Sizes:
16"
Alloy

START YOUR MONDRAKER JOURNEY WITH TRICK

You never forget the first time you rode a bike, just like you’ll never forget that first time you rode a Mondraker. That feeling you got from those first pedal strokes is indelible. The new Trick range, available in 16”, 20”, 24” and 26” sizes, will start a relationship with Mondraker that we’re sure will last you a lifetime.

All the frames are made from Alloy Stealth Evo and our Forward Geometry has been 100% tweaked to best suit kids’ needs. Internally guided cable routing is featured, as is 12x142mm rear hub spacing, a UDH mech hanger and 2.4” tyres. This tyre width is fundamental as it makes a huge difference to the grip available on tricky terrain, thus increasing confidence, and allows for lower tyre pressures in general to aid with comfort and control.

Components

Technical specs

  • frame

    Frame

    Trick 16 6061 Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger, BSA bottom bracket, 3/8x135mm rear axle

    sizes

    Sizes

    One size 210mm

  • fork

    Fork

    MDK 16 Kid, Alloy stanchions, Chromoly steering tube

    headset

    Headset

    FPD Dozer tapered internal 1048AS, 1-1/8" 1-1/2 15mm top cover + TJ3 top cap

  • stem

    Stem

    MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0º, length: 40mm

    handlebar

    Handlebar

    MDK XC 1.0, 6061 alloy, rise: 19mm, width: 540mm, 9º backsweep, 5º upsweep, 25.4mm barbore

  • grips

    Grips

    Onoff kids 19 100-100 mm

    seatpost

    Seatpost

    MDK XC, 6061 T6 alloy, diameter 27.2mm, length 200mm, offset 0mm

  • saddle

    Saddle

    Mondraker Leader Kids series

    front brake

    Front brake

    Clarks M2 Junior 140mm IS 6 bolts, one piece rotor

  • rear brake

    Rear brake

    Clarks M2 Junior 140mm IS 6 bolts, one piece rotor

    brake lever

    Brake lever

    Clarks M2 Junior

  • rims

    Rims

    MDK-XP1 20, 25mm internal width, 20 spokes

    spokes

    Spokes

    CN round stainless steel

  • front hub

    Front hub

    KT-K8QF, 9x100mm, cup & cone ball bearings

    rear hub

    Rear hub

    MSR 1B4 3/8x135mm, cup & cone ball bearings

  • front tire

    Front tire

    Kenda Booster 16x2.2 single compound 30TPI, wire bead

    rear tire

    Rear tire

    Kenda Booster 16x2.2 single compound 30TPI, wire bead

  • crankset

    Crankset

    Prowheel DM 28, 102mm

    rings

    Rings

    28T

  • bottom bracket

    Bottom bracket

    CH-52

    pedals

    Pedals

    NW-450 PP

  • chain

    Chain

    KMC Z-9, 9s

    casette

    Casette

    HG DRIVER 16T, 1S

  • weight

    Weight

    7,4 kg

Geometry

mm / inch

Frame size
Trick 16
A Seattube length 210mm 8.27"
B Toptube length 390mm 15.35"
C Bottom bracket drop -10mm -0.39"
D Bottom bracket height 200mm 7.87"
E Chainstay length 290+10mm 11.42"
F Seat tube angle 71º
G Effective seattube angle 71º
H Headtube angle 70º
I Fork Offset 23mm 0.91"
J Wheelbase 708mm 27.87"
K Headtube length 100mm 3.94"
L Reach 263mm 10.35"
M Stack 370mm 14.57"
Material de descarga

ALL AGES, ALL SIZES

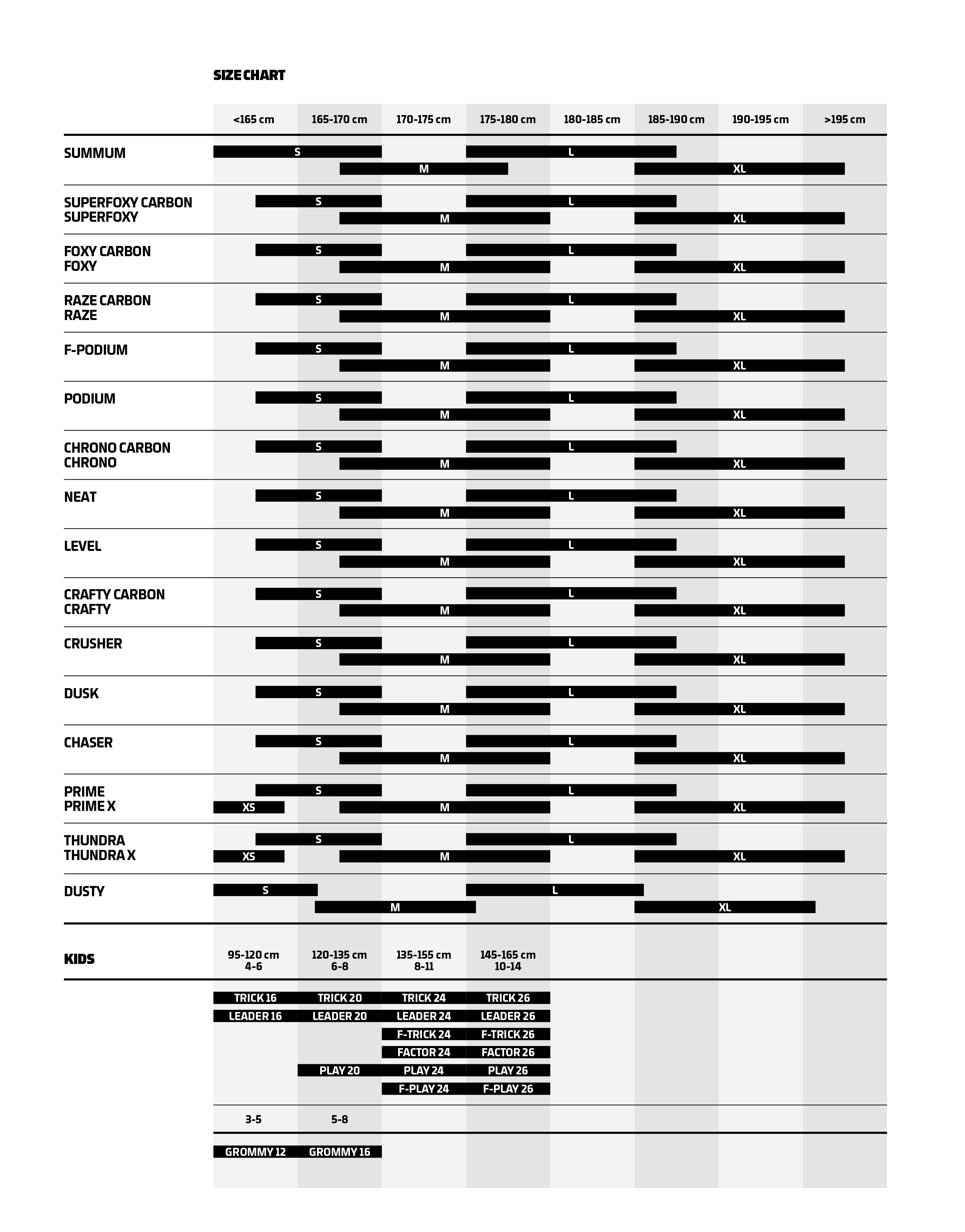

The new Trick, which takes the reigns from the Leader, does so with an all-new frame, new specs and several different models to cover all the ages with wheel sizes from 16” through to 26”. The 16” wheeled bikes cover kids from 4–6 years old, 20” wheels are for kids from 6–8, 24” wheels then cover our 8-11-year-olds and 26” wheels round things off for the 10-14-year-olds. A sizing chart for all of our kids range is available on our website.
