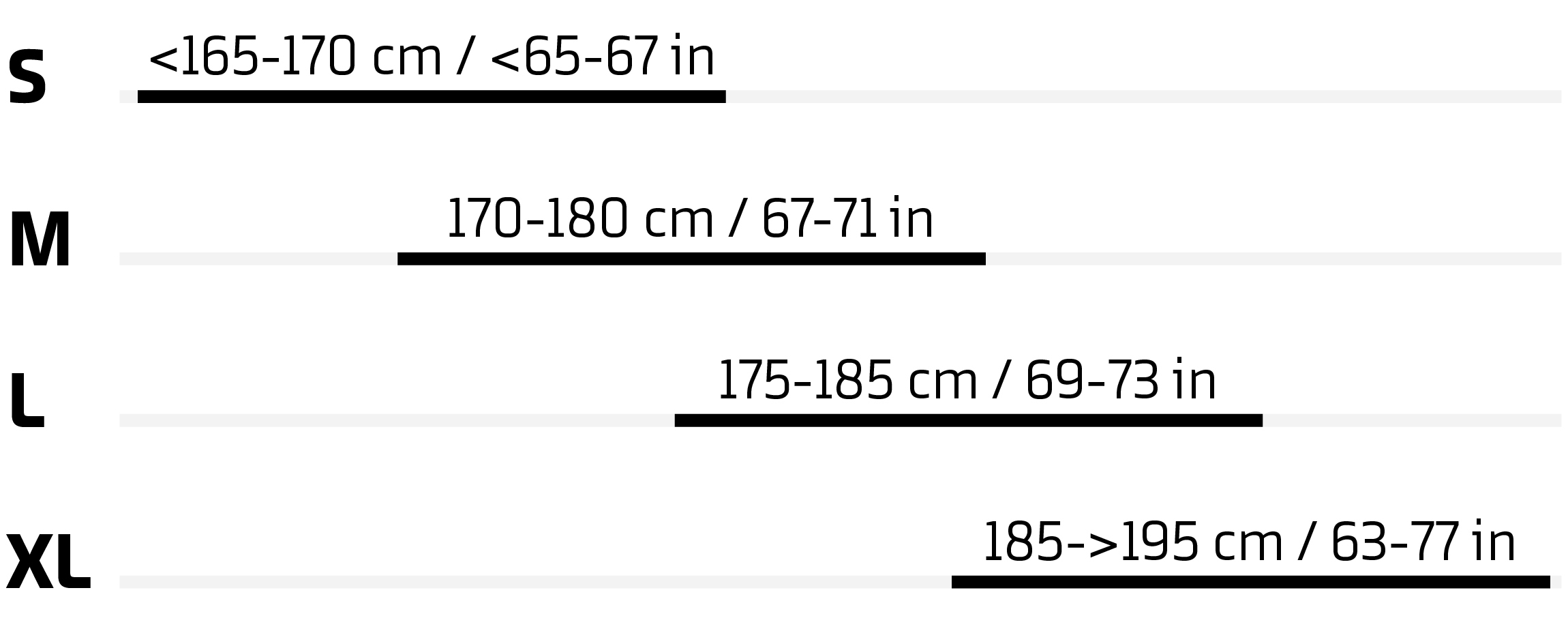

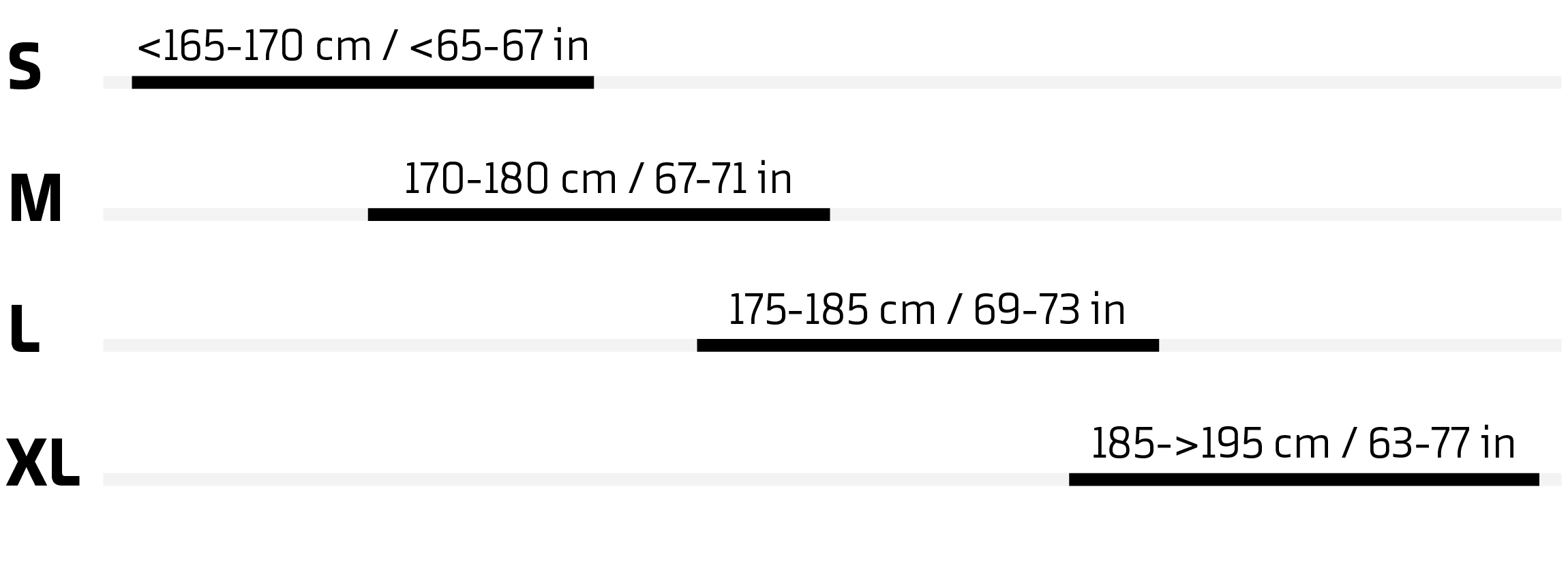

Sizes:
S M L XL
29"
160mm
150mm
Bosch CX
Alloy

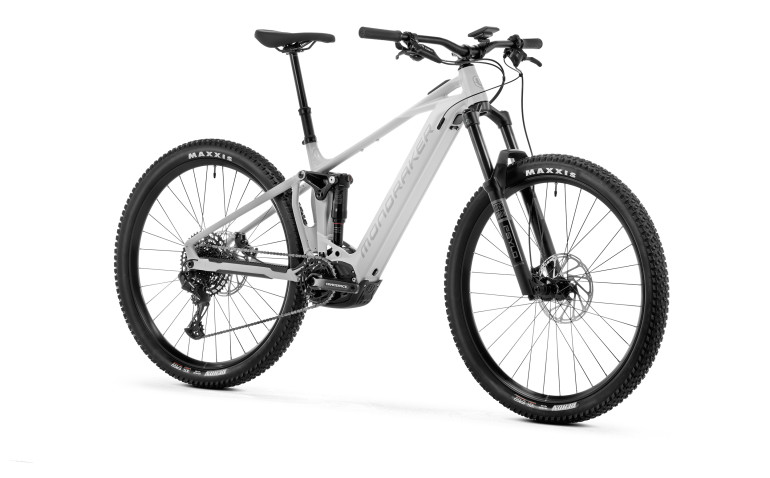

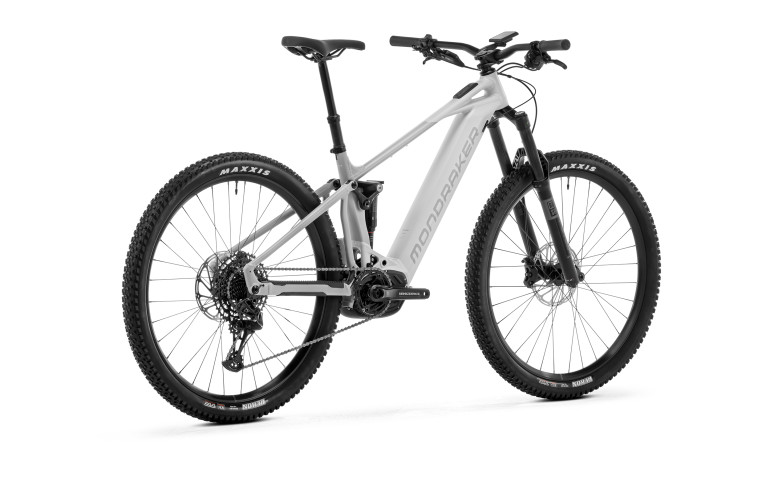

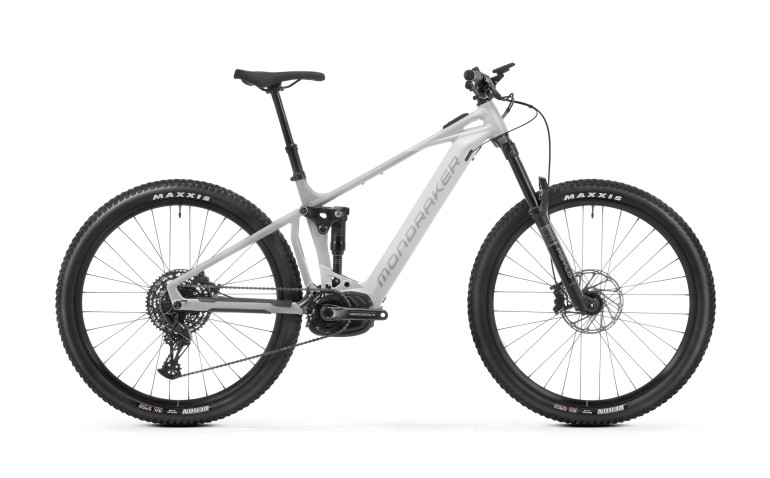

CHASER: FAR MORE THAN YOU IMAGINED

More because the Aluminium Stealth Alloy frame houses an integrated 750Wh battery and the latest version of perhaps the most relevant motor on the market today: the Bosch CX. More because the Zero Suspension System delivers 150mm travel (with a 160mm fork). More because you have three builds to choose from, plus all-new ONOFF components and Forward Geometry. Chaser is our best and most accessible full suspension eMTB for anyone looking to get started in the world of ebikes.

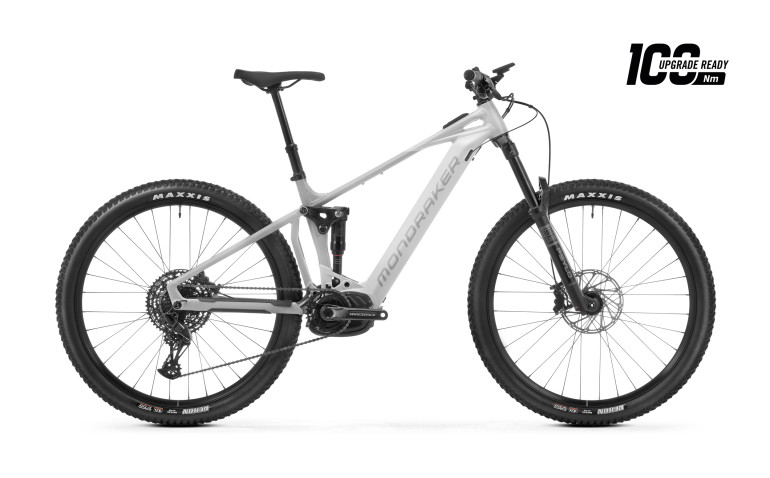

WE’VE HIT THE 100NM MILESTONE

Some barriers are made to be broken, and ebike motors reaching 100Nm of torque has long been one of them. With this latest update, all Bosch CX Gen 5 motors (type BDU 385Y) will see the current 600W and 85Nm of torque taken up to 750W and 100Nm, and pedal assistance taken up to 400%.

Components

Technical specs

  • frame

    Frame

    Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard

    sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • rear shock

    Rear shock

    RockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

    shock settings

    Shock settings

    Light compression, Linear rebound, 1 Token

  • fork

    Fork

    RockShox Psylo Silver 29, 160mm, Motion control damper, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

    headset

    Headset

    Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

  • stem

    Stem

    Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

    handlebar

    Handlebar

    Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

  • grips

    Grips

    Onoff Beehive, 1lock-on, 135mm

    seatpost

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)

  • saddle

    Saddle

    MDK ebike black

    front brake

    Front brake

    Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

    brake lever

    Brake lever

    Sram DB8, tool reach adjust, lever pivot bushings

  • rims

    Rims

    Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

    spokes

    Spokes

    Mavic J-bend double butted, contactless lacing

  • front hub

    Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

    rear hub

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

  • front tire

    Front tire

    Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

    rear tire

    Rear tire

    Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

  • crankset

    Crankset

    Race Face Aeffect-R ebike, 160mm

    rings

    Rings

    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

  • chain

    Chain

    Sram SX Eagle, 12s, Powerlock

    rear derrailleur

    Rear derrailleur

    Sram SX Eagle,12s

  • shift levers

    Shift levers

    Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

    casette

    Casette

    Sram PG-1210, 11-50T, 12s

  • derailleur hanger

    Derailleur hanger

    Sram UDH

    weight

    Weight

    25,3 kg

  • display

    Display

    Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

    motor

    Motor

    New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

  • battery

    Battery

    Bosch Powertube 750Wh

Geometry

mm / inch

Frame size
S M L XL
A Seattube length 380 mm 14.96" 420 mm 16.54" 450 mm 17.72" 490 mm 19.29"
B Toptube length 605 mm 23.82" 625 mm 24.61" 650 mm 25.59" 670 mm 26.38"
C Bottom bracket drop -25 -25mm -0.98" -25 mm -0.98" -25 mm -0.98"
D Bottom bracket height 336 mm 13.23" 336 mm 13.23" 336 mm 13.23" 336 mm 13.23"
E Chainstay length 455 mm 17.91" 455 mm 17.91" 455 mm 17.91" 445 mm 17.52"
F Seat tube angle 73,5° 73,5° 73,5° 73,5°
G Effective seattube angle 76° 76° 76° 76°
H Headtube angle 65,5° 65,5° 65,5° 65,5°
I Fork Offset 44 mm 1.73" 44 mm 1.73" 44 mm 1.73" 44 mm 1.73"
J Wheelbase 1225 mm 48.23" 1245 mm 49.02" 1265 mm 49.80" 1285 mm 50.59"
K Headtube length 110 mm 4.33" 110mm 4.33" 130 mm 5.12" 130 mm 5.12"
L Reach 450 mm 17.72" 470 mm 18.50" 490 mm 19.29" 510 mm 20.08"
M Stack 622 mm 24.49" 622 mm 24.49" 640 mm 25.20" 640 mm 25.20"
