CHASER RX

CHASER RX

URBAN CROSS

Bikes CHASER 750 CHASER R CHASER CHASER X
Information Components Geometry Gallery Downloads
5.999€
VAT included
CHECK AVAILABILITY

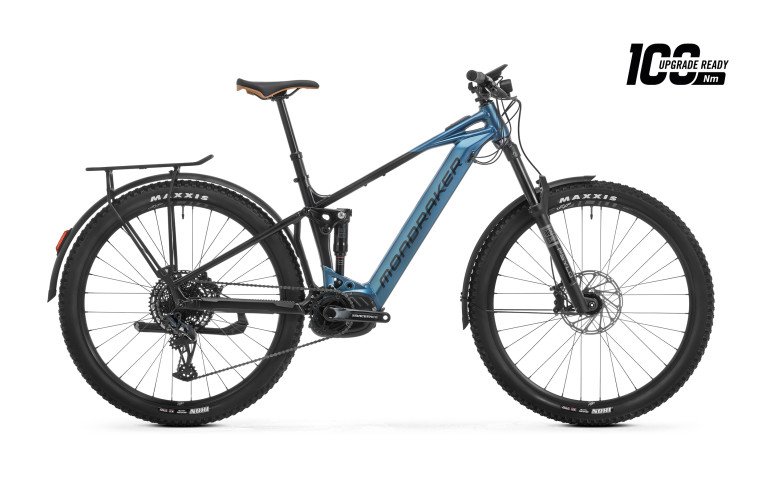

WE’VE HIT THE 100NM MILESTONE

Some barriers are made to be broken, and ebike motors reaching 100Nm of torque has long been one of them. With this latest update, all Bosch CX Gen 5 motors (type BDU 385Y) will see the current 600W and 85Nm of torque taken up to 750W and 100Nm, and pedal assistance taken up to 400%.

CHASER X: FROM DIRT TO ASPHALT

And back to the dirt again, regardless of what’s passing under your wheels. Carefree when it comes to how far you can commute around town, or how high you can climb in the countryside at the weekend. Chaser X comes complete with mudguards, lights and a pannier rack. The 150mm suspension coupled with a 160mm fork, plus the Zero Suspension System and a component list that’s more than up to taking some risks on the dirt and keeping everything under control on-road, multiplies the versatility by three, as well as your plans and your fun.


  1. 29
  2. ZERO SUSPENSION SYSTEM
  3. FORWARD GEOMETRY
  4. STEALTH ALLOY
  5. BOSCH

Components

Technical specs

  • frame

    Frame

    Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 140mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard

    sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • rear shock

    Rear shock

    RockShox Deluxe Select R DebonAir, 205x60mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

    shock settings

    Shock settings

    Light compression, Linear rebound, 1 Token

  • fork

    Fork

    RockShox Psylo Silver 29, 150mm, Motion control damper, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

    headset

    Headset

    Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

  • stem

    Stem

    Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

    handlebar

    Handlebar

    Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

  • grips

    Grips

    Onoff Beehive, 1lock-on, 135mm

    seatpost

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)

  • saddle

    Saddle

    MDK urban

    front brake

    Front brake

    Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

    brake lever

    Brake lever

    Sram DB8, tool reach adjust, lever pivot bushings

  • rims

    Rims

    MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes

    spokes

    Spokes

    CN round stainless steel

  • front hub

    Front hub

    Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

    rear hub

    Rear hub

    Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub

  • front tire

    Front tire

    Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

    rear tire

    Rear tire

    Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

  • crankset

    Crankset

    Race Face Aeffect-R ebike, 165mm

    rings

    Rings

    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

  • pedals

    Pedals

    Urban pedal resin black

    chain

    Chain

    Sram SX Eagle, 12s, Powerlock

  • rear derrailleur

    Rear derrailleur

    Sram GX Eagle,12s

    shift levers

    Shift levers

    Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

  • casette

    Casette

    Sram PG-1210, 11-50T, 12s

    derailleur hanger

    Derailleur hanger

    Sram UDH

  • others

    Others

    Front light: 150LUX output DC 6-12V, waterproof Alloy cage. Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. Fenders: Alloy black MDK custom fenders. Rack: Alloy MDK rear Rack, Max loading 25kg. Kickstand: Massload KSA18-40

    weight

    Weight

    26,3 kg

  • display

    Display

    Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller

    motor

    Motor

    New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

  • battery

    Battery

    Bosch Powertube 750Wh

Read more Read less

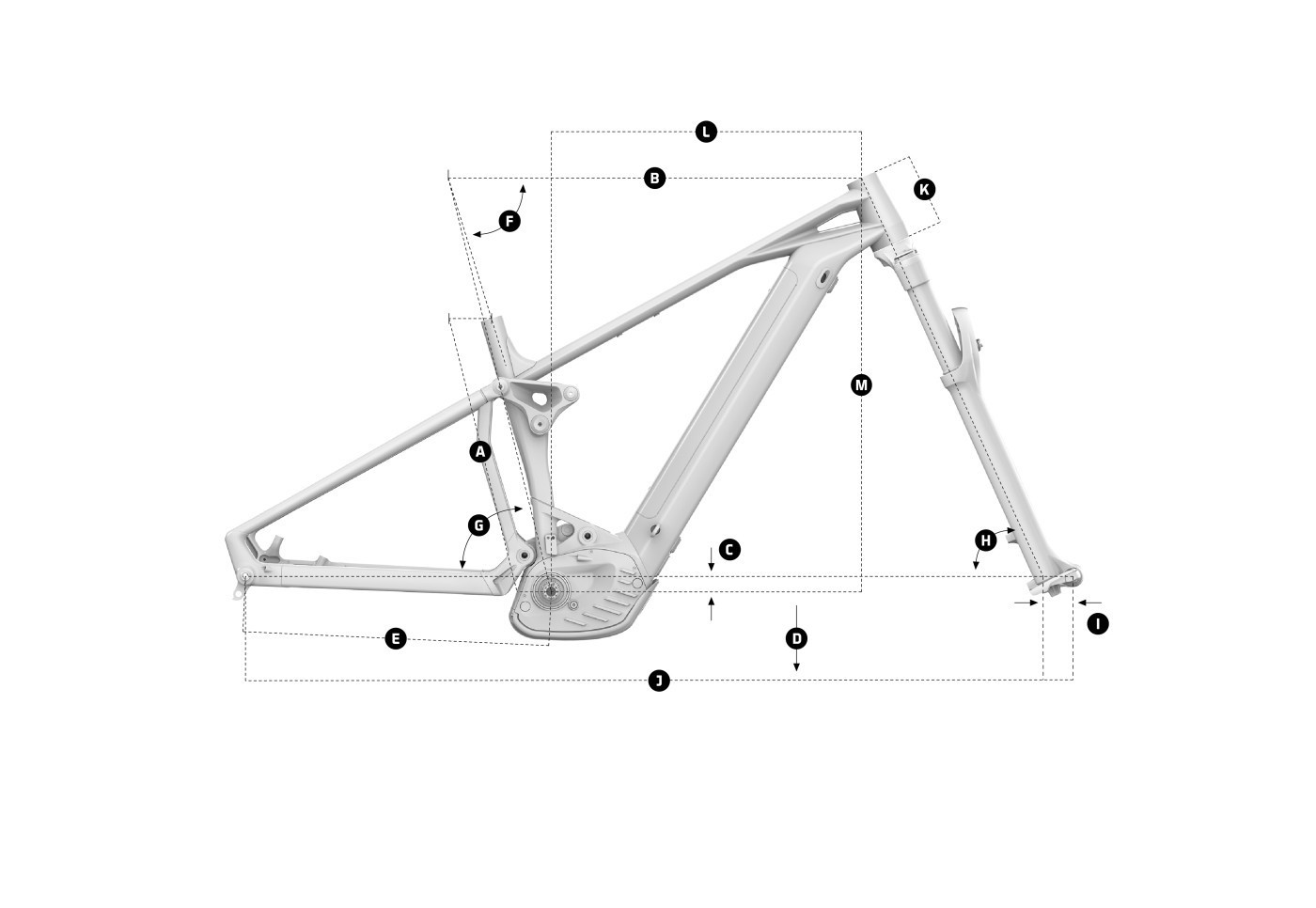

Geometry

mm / inch

Frame size
S M L XL
A Seattube length 380mm 14.96" 420mm 16.54" 450mm 17.72" 490mm 19.29"
B Toptube length 605mm 23.82" 625mm 24.61" 650mm 25.59" 670mm 26.38"
C Bottom bracket drop -25mm -0.98" -25mm -0.98" -25mm -0.98" -25mm -0.98"
D Bottom bracket height 350mm 13.78" 350mm 13.78" 350mm 13.78" 350mm 13.78"
E Chainstay length 455mm 17.91" 455mm 17.91" 455mm 17.91" 455mm 17.91"
F Seat tube angle 73.5° 73.5° 73.5° 73.5°
G Effective seattube angle 76° 76° 76° 76°
H Headtube angle 65.5° 65.5° 65.5° 65.5°
I Fork Offset 44mm 1.73" 44mm 1.73" 44mm 1.73" 44mm 1.73"
J Wheelbase 1225mm 48.23" 1245mm 49.02" 1265mm 49.80" 1285mm 50.59"
K Headtube length 110mm 4.33" 110mm 4.33" 130mm 5.12" 130mm 5.12"
L Reach 450mm 17.72" 470mm 18.50" 490mm 19.29" 510mm 20.08"
M Stack 622mm 24.49" 622mm 24.49" 640mm 25.20" 640mm 25.20"
Read more Read less
