From dust, salt and speed. From a way of understanding bikes where every decision matters and every terrain asks something different of you.
That's where it all begins. And it's also the reason we see gravel differently. For the adventure. For the shared moments and for the joy of the ride, even when the road changes.
BROKEN ROADS. ARID TRACKS. UNEXPLORED TRAILS that connect places, people and stories. Places where getting there first doesn't always matter. Or even getting further than anyone else. Just keep moving forward.
Mediterranean roots. Mondraker DNA. Driven by technology. Limitless. Unmistakable.
Ready to keep going when the road changes.
Components
Frame
Arid 6061 Alloy Stealth Evo, hydroformed tubing, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
Sizes
S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem
Onoff S3, 31.8mm barbore, 6061 alloy, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar
Onoff S3 GR 16º bar flare. Width sizes: S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm
Grips
Onoff HEX Bartape
Seatpost
Onoff S3 0-R, diameter 27,2mm, length 400mm
Saddle
Fizik Vento Argo X5 140mm
Front brake
Sram Apex AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Rear brake
Sram Apex AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake lever
Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
Rims
Mavic Allroad Disc, 25mm internal width, hookless, 28 spokers
Spokes
Mavic Steel J Bent spokes
Front hub
Mavic, 12x100mm, Centerlock
Rear hub
Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, Centerlock, HG Freehub
Front tire
Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
Rear tire
Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
Crankset
Sram Apex 1 Wide, S size: 165mm M size: 165mm ML size: 170mm L size: 172,5mm XL size: 172,5mm, CL 47,5
Rings
Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket
Sram DUB T47 BSA, sealed bearings, 85,5mm
Chain
Sram GX Eagle T-Type, 12s Flattop, Powerlock
Rear derrailleur
Sram S1000 Eagle AXS T-Type, 12s
Shift levers
Sram Apex AXS D1 12s,
Casette
Sram XS-1270, 10-52T, T-Type, 12s

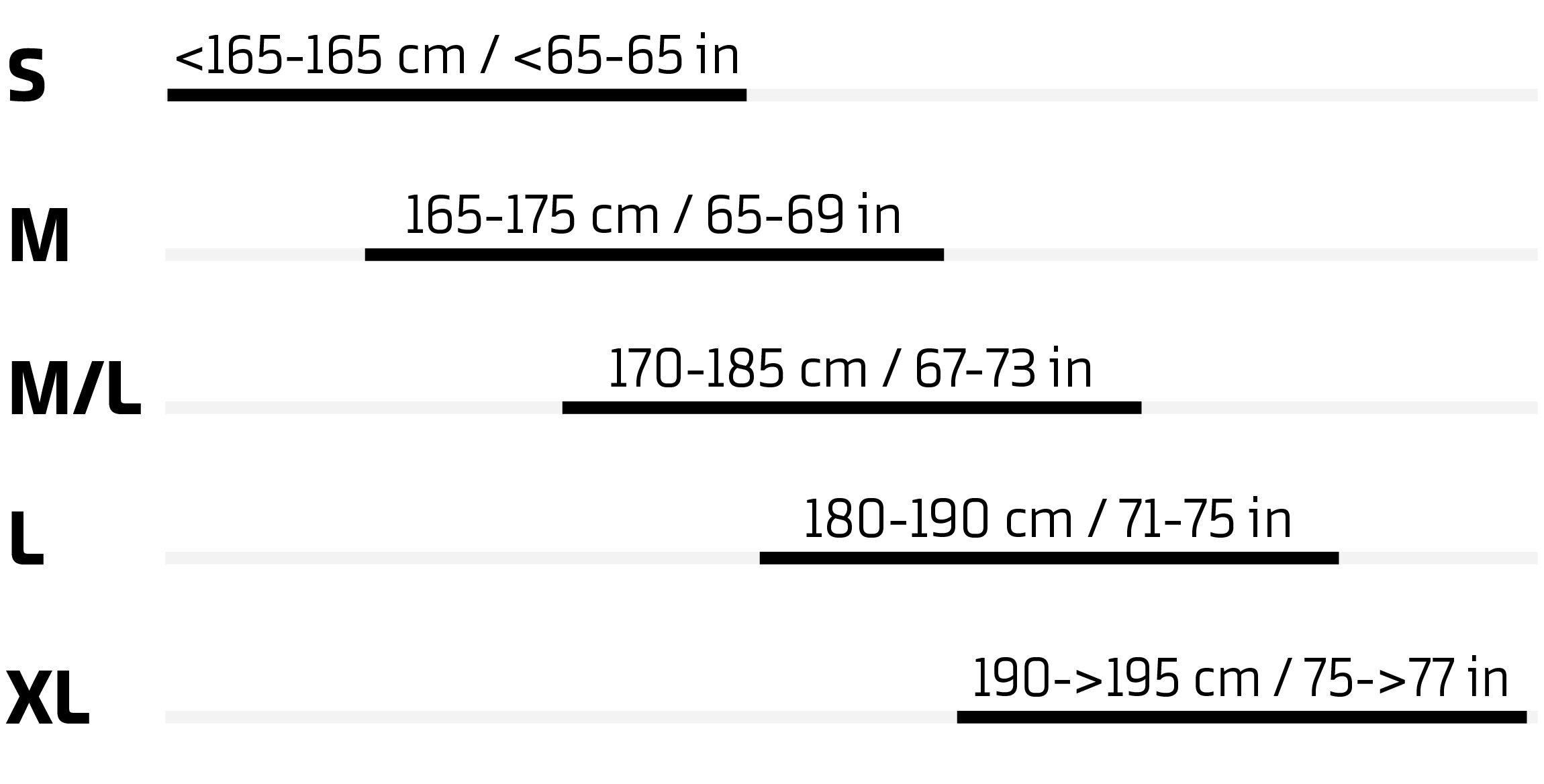

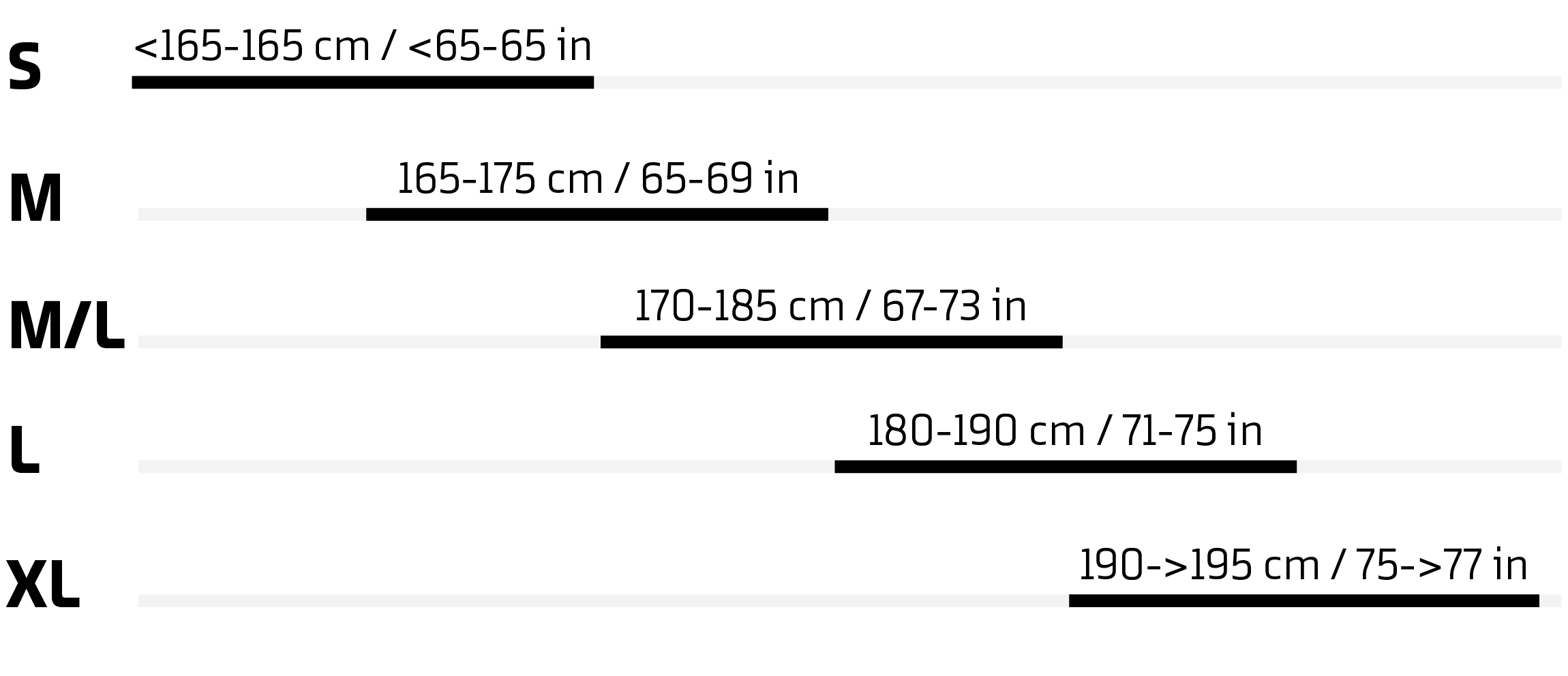

This size table is only an estimation, the optimum frame size depends on your personal preference and riding style
|

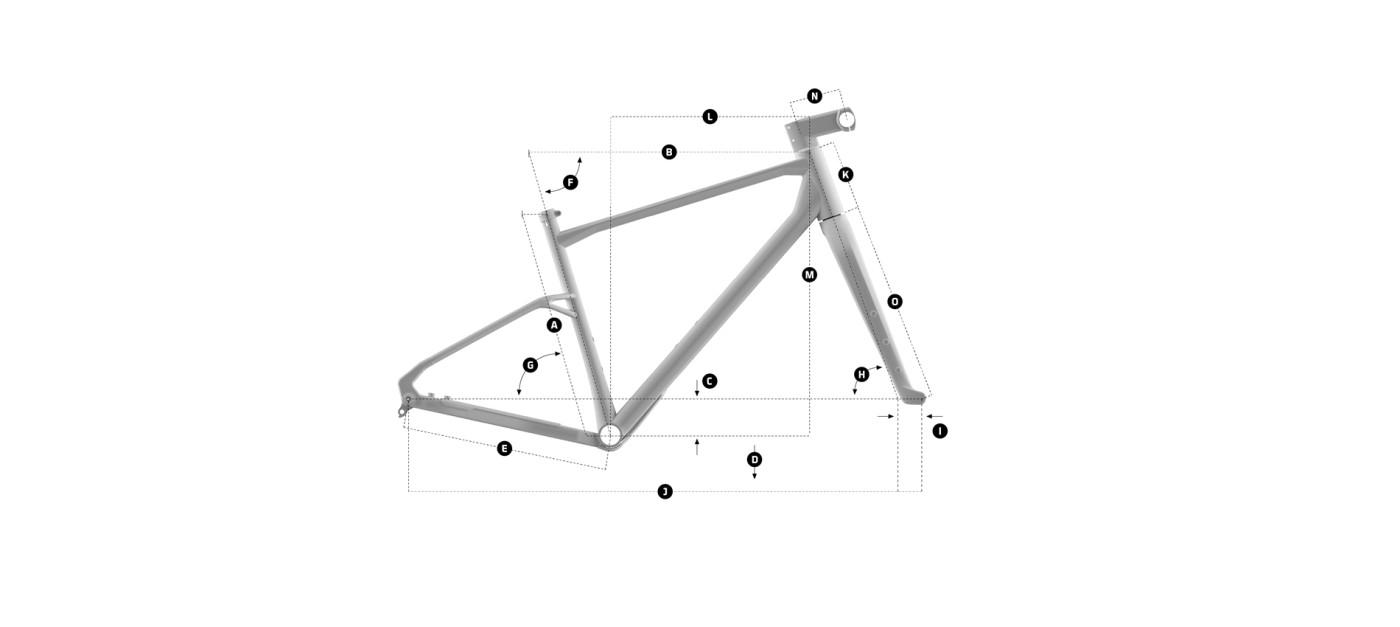

Frame size
|
S | M | M/L | L | XL | |
|---|---|---|---|---|---|---|
| A | Seattube length | 410 mm 16.14" | 450 mm 17.72" | 480 mm 18.90" | 510 mm 20.08" | 540 mm 21.26" |
| B | Toptube length | 520 mm 20.47" | 550 mm 21.65" | 580 mm 22.83" | 600 mm 23.62" | 630 mm 24.80" |
| C | Bottom bracket drop | -75 | -75 | -75 | -75 | -75 |
| D | Bottom bracket height | 269 mm 10.59" | 269 mm 10.59" | 269 mm 10.59" | 269 mm 10.59" | 269 mm 10.59" |
| E | Chainstay length | 425 mm 16.73" | 425 mm 16.73" | 425 mm 16.73" | 425 mm 16.73" | 425 mm 16.73" |
| F | Seat tube angle | 73° | 73° | 73° | 73° | 73° |
| G | Effective seattube angle | 74° | 74° | 74° | 74° | 74° |
| H | Headtube angle | 70° | 70° | 70° | 70° | 70° |
| I | Fork Offset | 45 mm 1.77" | 45 mm 1.77" | 45 mm 1.77" | 45 mm 1.77" | 45 mm 1.77" |
| J | Wheelbase | 1003 mm 39.49" | 1035 mm 40.75" | 1067 mm 42.01" | 1089 mm 42.87" | 1121 mm 44.13" |
| K | Headtube length | 100 mm 3.94" | 125 mm 4.92" | 145 mm 5.71" | 175 mm 6.89" | 200 mm 7.87" |
| L | Reach | 363 mm 14.29" | 386 mm 15.20" | 411 mm 16.18" | 423 mm 16.65" | 446 mm 17.56" |
| M | Stack | 548 mm 21.57" | 572 mm 22.52" | 591 mm 23.27" | 619 mm 24.37" | 642 mm 25.28" |
| N | Stem Length | 60 mm 2.36" | 70 mm 2.76" | 70 mm 2.76" | 80 mm 3.15" | 90 mm 3.54" |
| O | Fork Height | 420 mm 16.54" | 420 mm 16.54" | 420 mm 16.54" | 420 mm 16.54" | 420 mm 16.54" |
