Bike Frame

Sizes:

S M ML L XL

700

Carbon

Frame · Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
Fork · Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Seatpost · Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm

GRAVEL

Information Components Geometry Gallery Downloads

$2,999

CHECK AVAILABILITY

UNLIMITED is Mondraker's series of special project and designs

Driven by pure creative freedom.

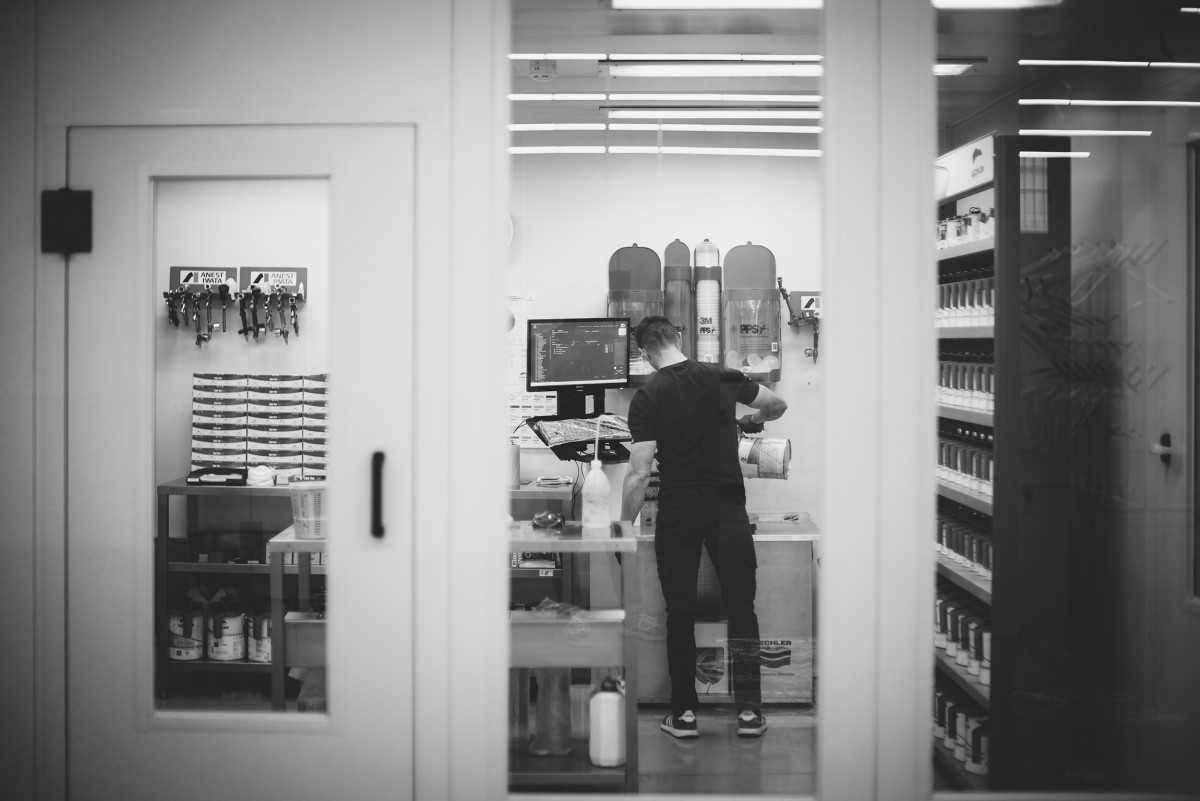

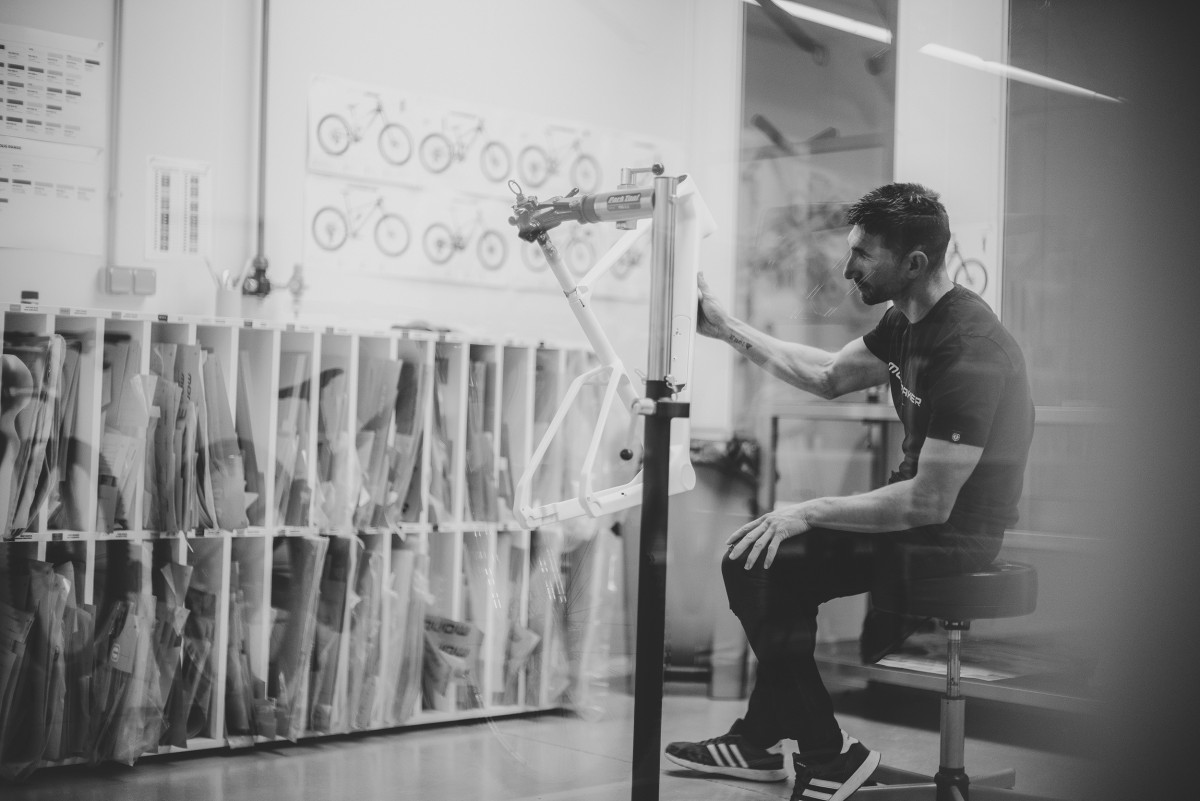

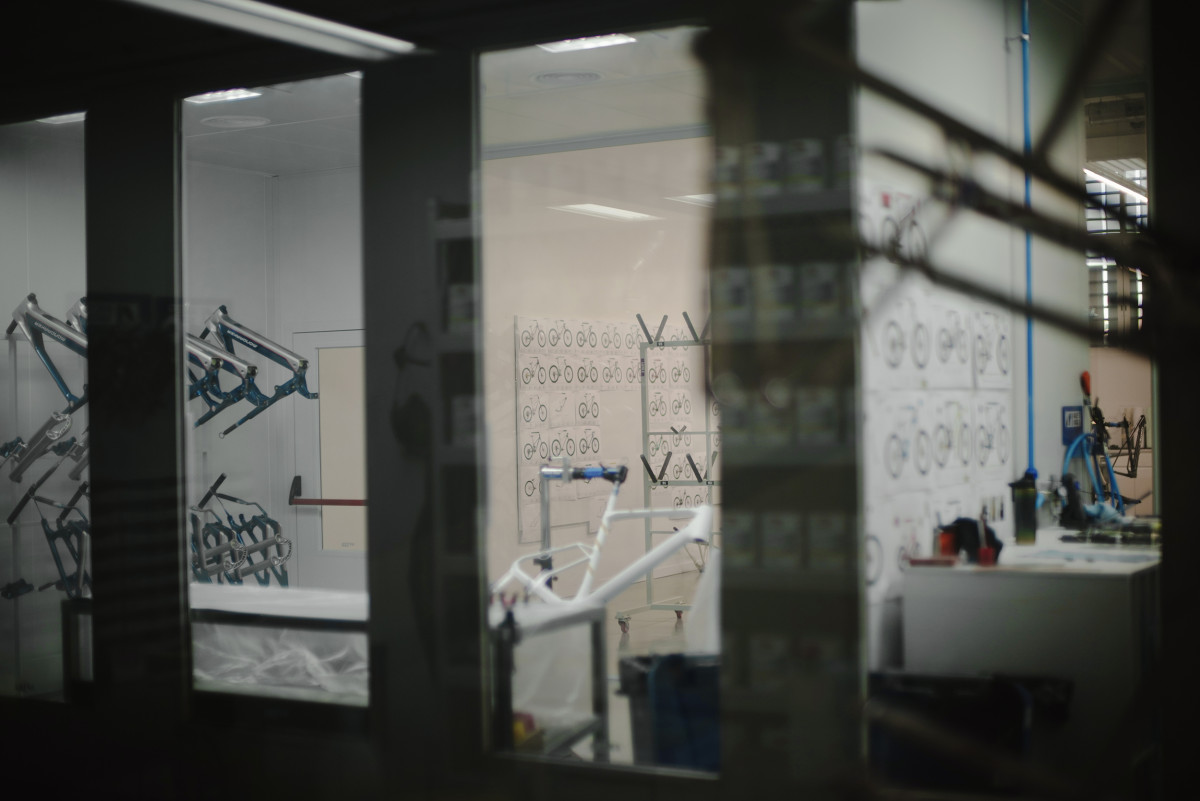

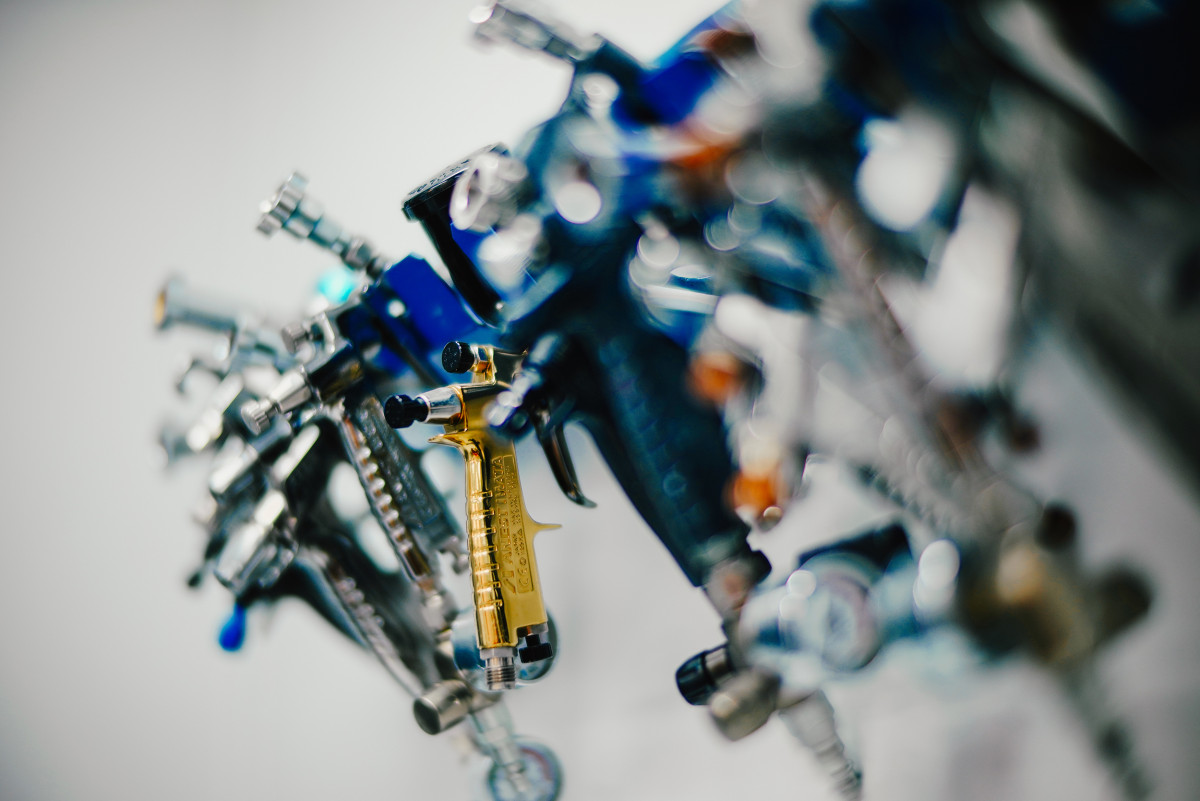

Each project is a chance to explore ideas beyond the standard range: unique paintjobs, special builds, sometimes both — designed by riders and artists who wanted to push limits further. Every colour is developed at our headquarters in the Blue Lab, Mondraker's dedicated colour department, and hand-painted in-house with meticulous precision, one unit at a time.

700

Carbon

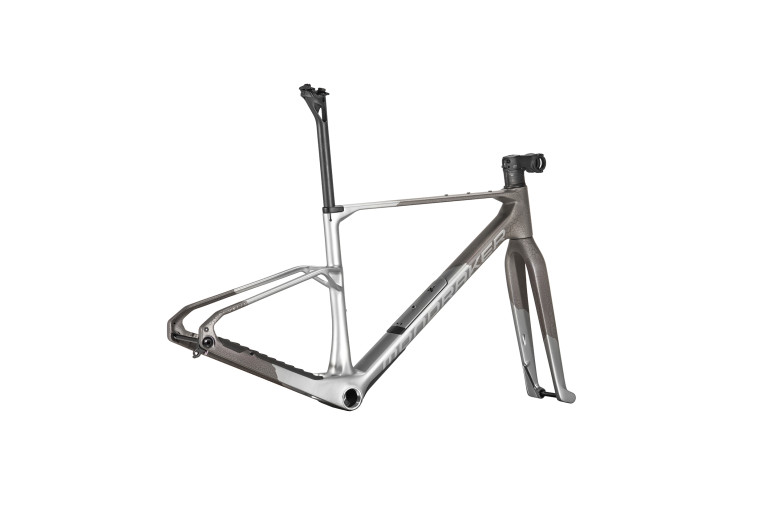

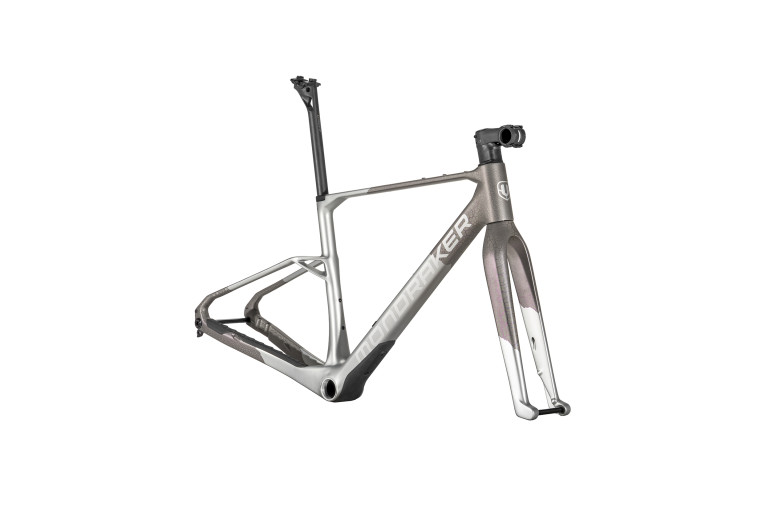

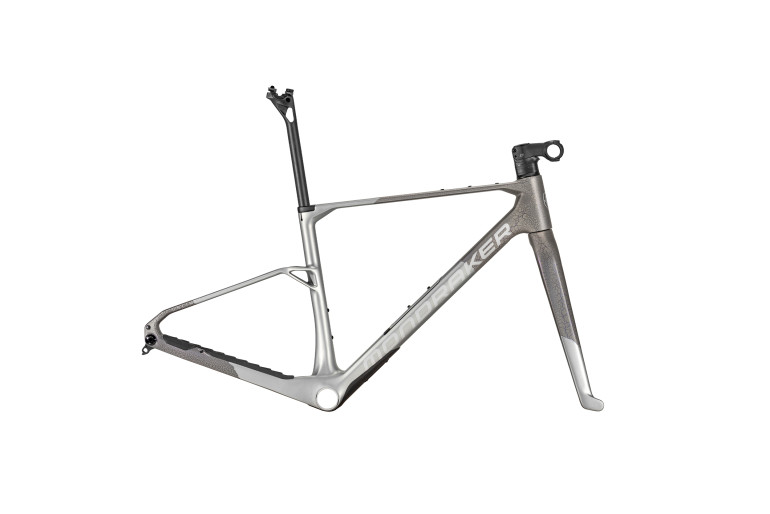

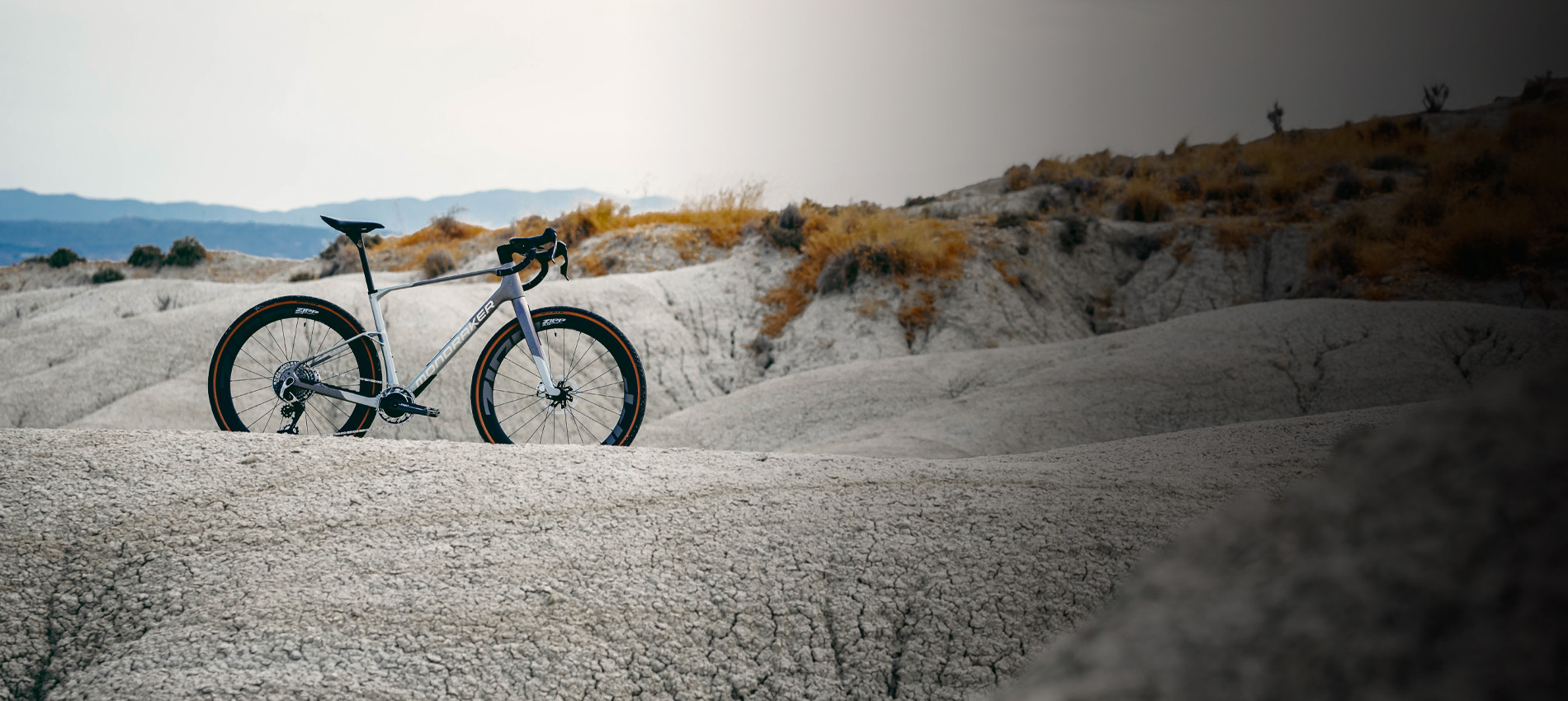

ARID CARBON UNLIMITED

GRAVEL

$2,999

The result is more than a bike;

it's a piece of art you won't see anywhere else. Produced in limited numbers, UNLIMITED is for those who want their bike to say something about who they are.

Mondraker expands its gravel offering with the launch of the UNLIMITED FAULTLINE, an exclusive Arid Carbon Frameset that brings the UNLIMITED spirit to the gravel range. Same gravel performance as the standard Arid Carbon, but with a completely different personality.

FAULTLINE: Fractured Terrain, Cast in Carbon

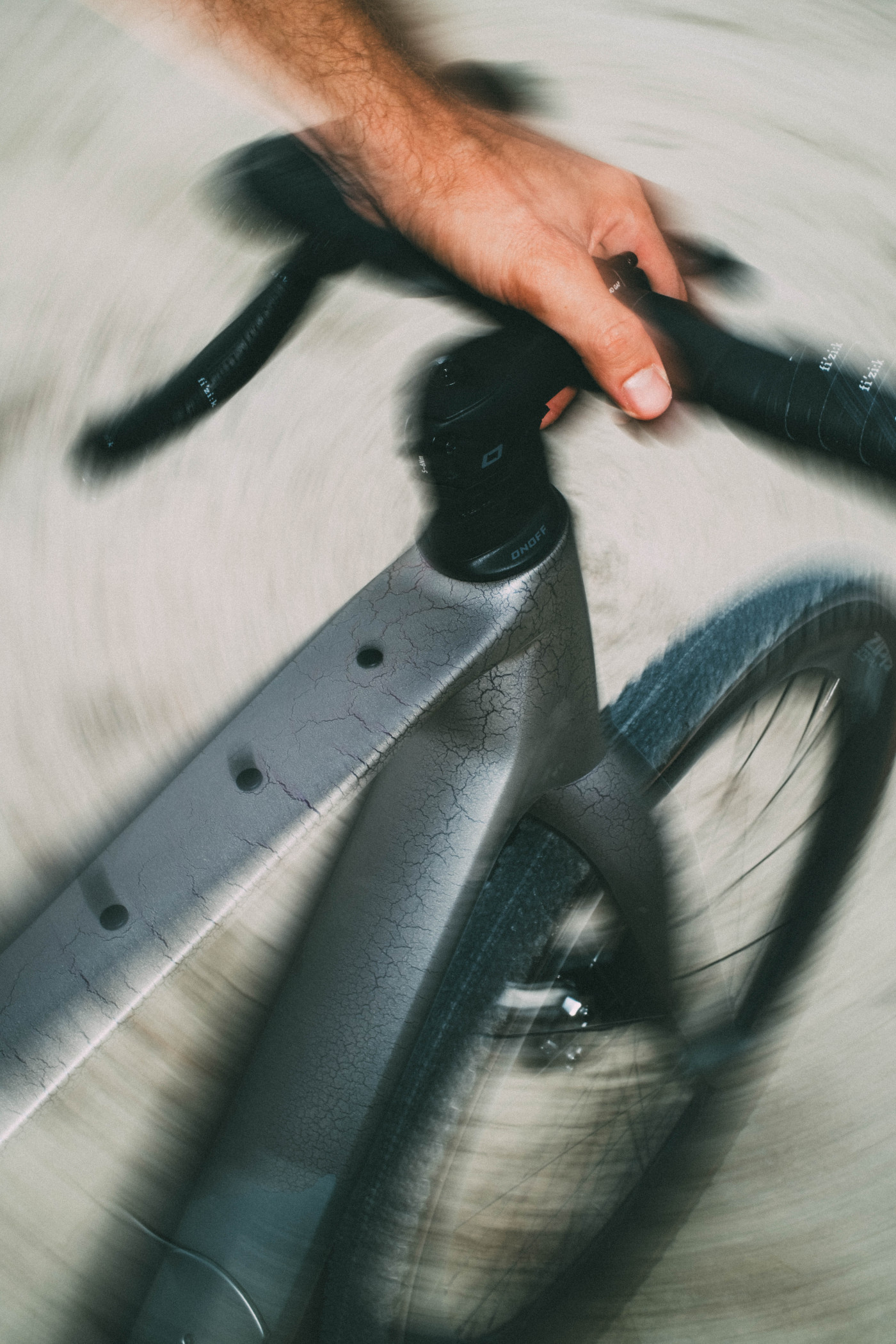

A real special paintjob, with a finish that combines Lunar Magnesium and Vapor Titanium, two mineral tones that shift against each other in a layered cracked texture — a direct visual representation of the fractured terrain and shifting landscapes the Arid was designed to explore.

The result isn't just aesthetic: it's a statement. Exploration. Courage. Beyond familiar ground.

Real riding. Real terrain. Real gravel.

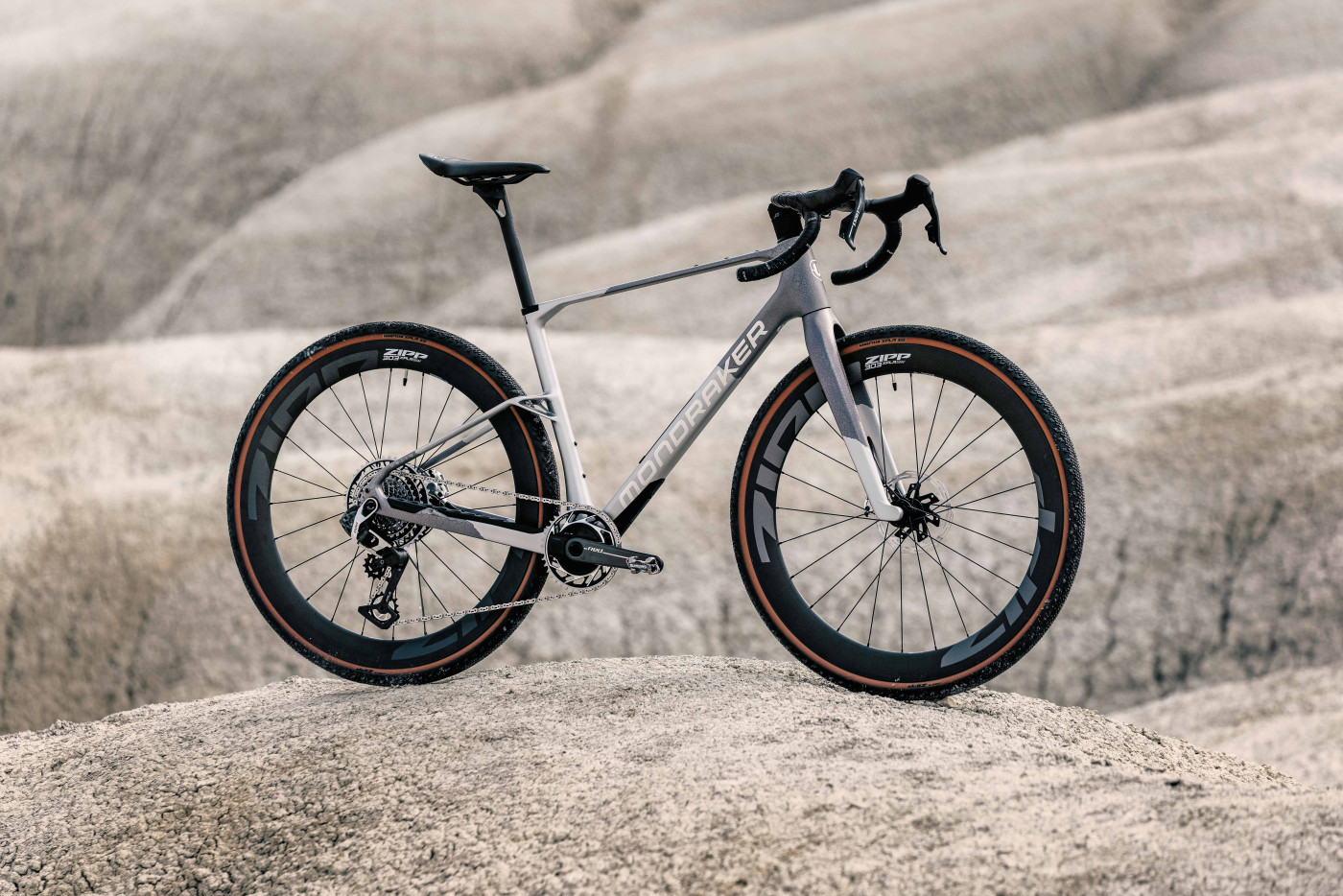

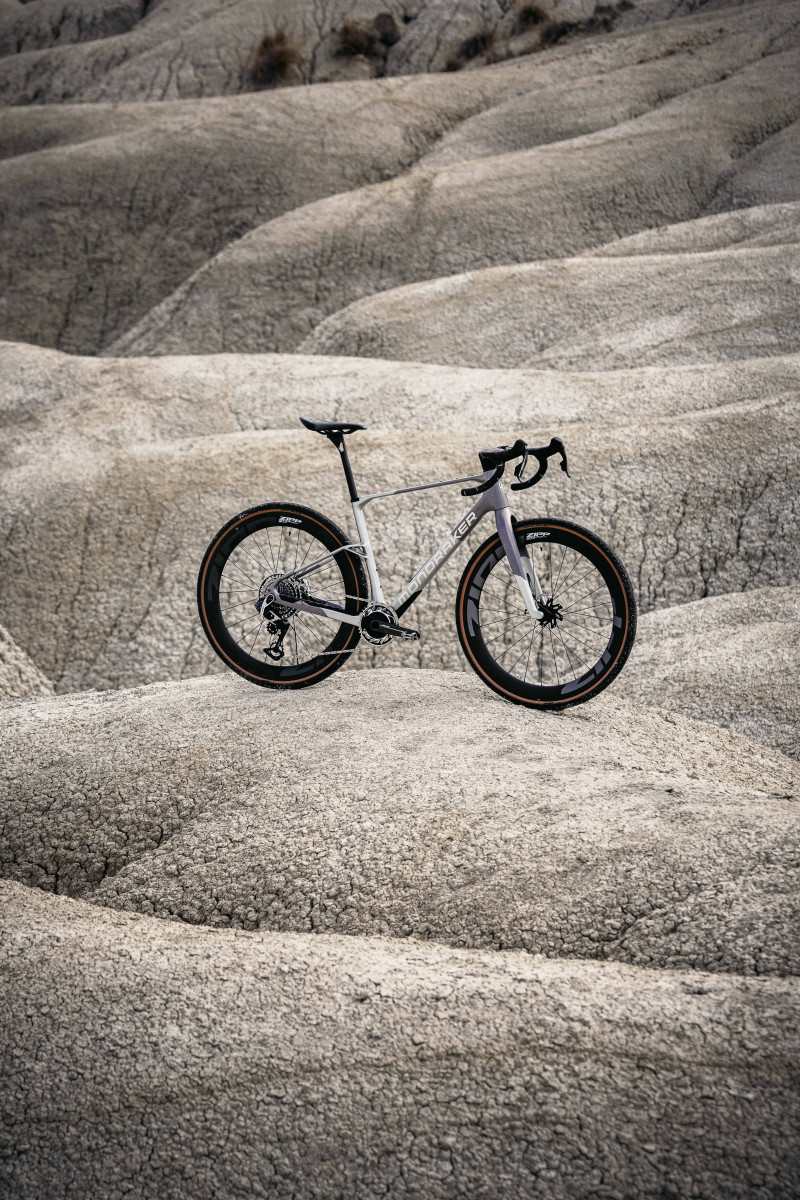

The Unlimited Faultline edition is based on the Arid Stealth Air Carbon platform — the same platform that has stood on the podium at The Traka 2026, taken on the demanding gravel roads of Emporia at Unbound, and conquered the desertic climbs of Badlands.

Key technical details include:

Frame: Arid Stealth Air Carbon with in-frame storage, HHG internal cable routing, 12x142mm rear axle, UDH standard, and 1X drivetrain design, flatmount brakes only.

Fork: Updated Stealth Air Carbon fork, side mounts removed for a sleeker silhouette, ~20g lighter, with added flex where it matters.

Bottom bracket: T47 BSA, 47.5mm chain line.

Tire clearance: Up to 50mm.

Stem: Onoff gravel alloy stem. Size S: 60mm, M: 70mm, ML: 70mm; L: 80mm, XL: 90mm.

Seatpost: Onoff S9 carbon, 27.2mm. Size S: 400mm, M: 400mm, ML: 400mm, L; 450mm, XL: 450mm.

Included in the frameset: Stealth Air Carbon frame and fork, carbon Onoff seatpost, alloy Onoff headset, stem and seat clamp, front and rear axles, Sram UDH, 3 carry-on bags for the in-frame storage.

Components

Technical specs

Frame

Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.

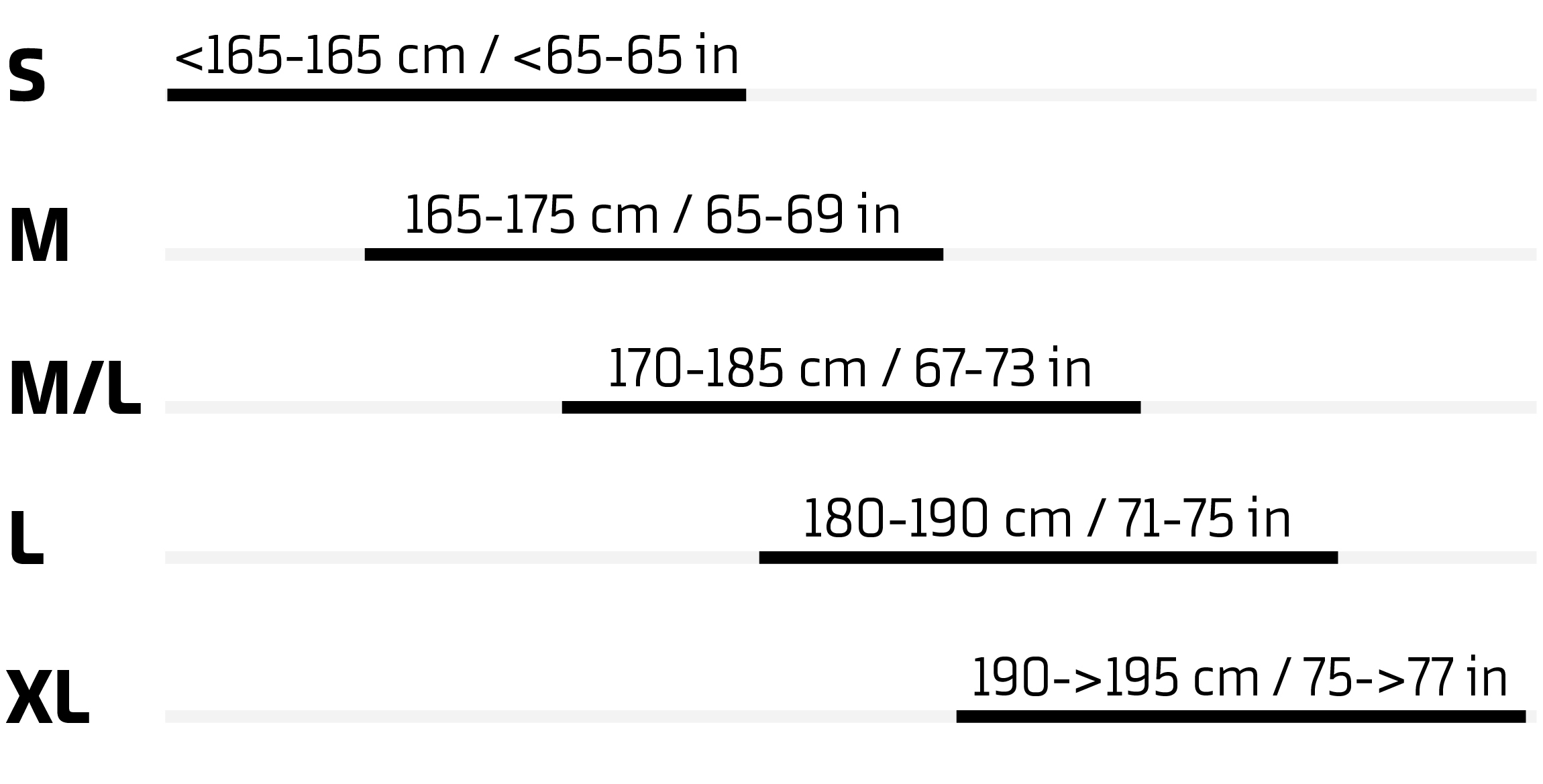

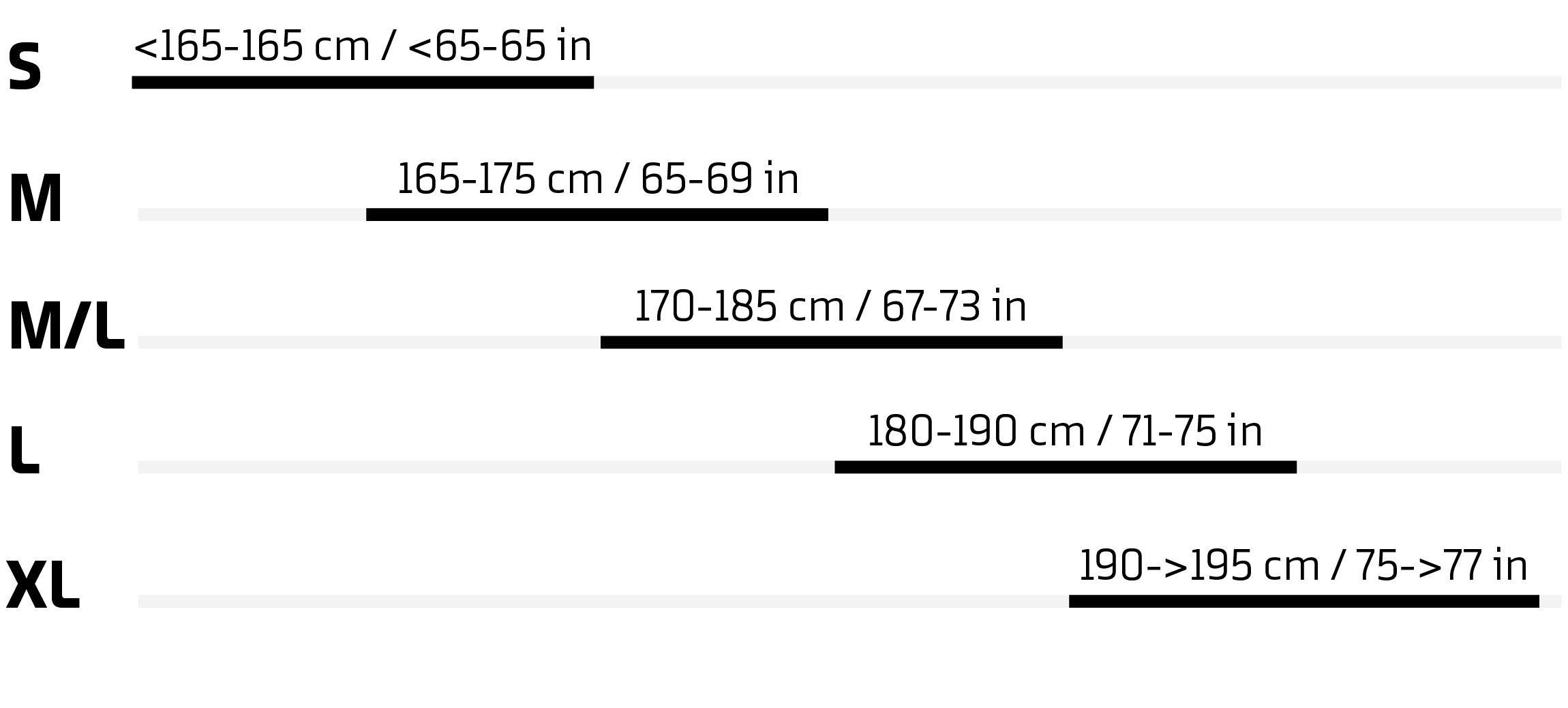

Sizes

S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Fork

Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

Headset

Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem

Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

Seatpost

Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
Derailleur hanger

Sram UDH

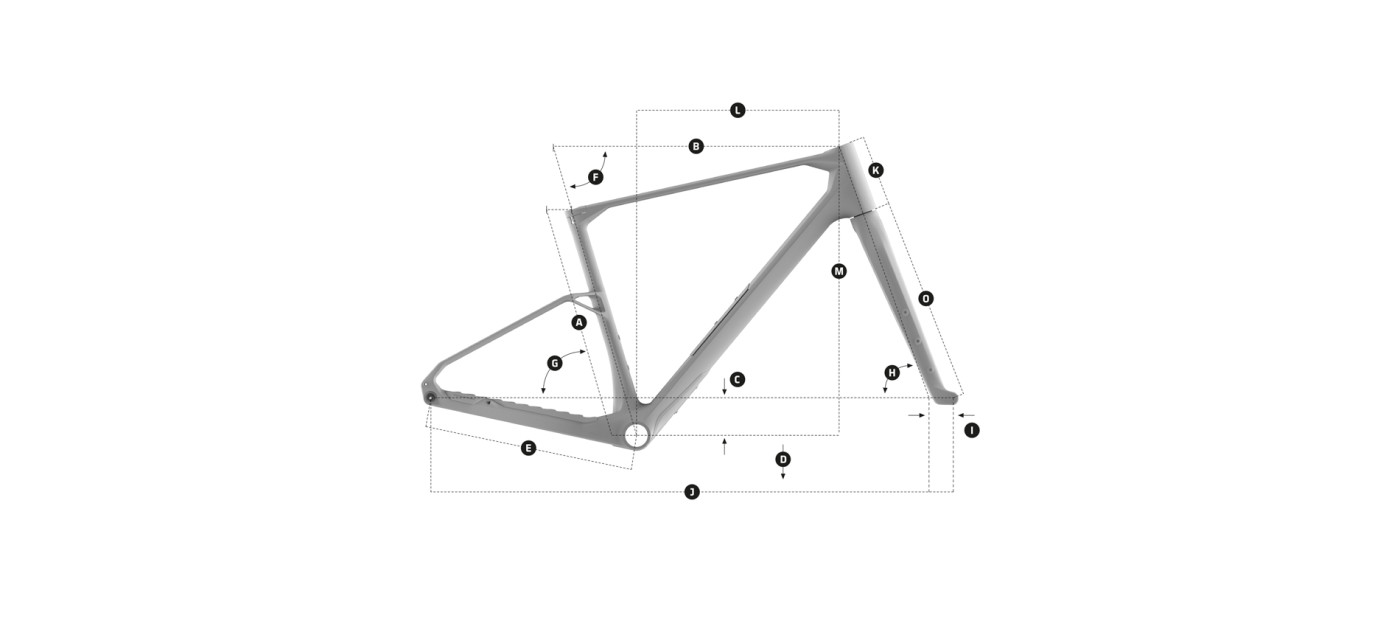

Geometry

mm / inch


	Frame size	S	M	M/L	L	XL
A	Seattube length	410 mm 16.14"	450 mm 17.72"	480 mm 18.90"	510 mm 20.08"	540 mm 21.26"
B	Toptube length	520 mm 20.47"	550 mm 21.65"	580 mm 22.83"	600 mm 23.62"	630 mm 24.80"
C	Bottom bracket drop	-75	-75	-75	-75	-75
D	Bottom bracket height	269 mm 10.59"	269 mm 10.59"	269 mm 10.59"	269 mm 10.59"	269 mm 10.59"
E	Chainstay length	425 mm 16.73"	425 mm 16.73"	425 mm 16.73"	425 mm 16.73"	425 mm 16.73"
F	Seat tube angle	73°	73°	73°	73°	73°
G	Effective seattube angle	74°	74°	74°	74°	74°
H	Headtube angle	70°	70°	70°	70°	70°
I	Fork Offset	45 mm 1.77"	45 mm 1.77"	45 mm 1.77"	45 mm 1.77"	45 mm 1.77"
J	Wheelbase	1003 mm 39.49"	1035 mm 40.75"	1067 mm 42.01"	1089 mm 42.87"	1121 mm 44.13"
K	Headtube length	100 mm 3.94"	125 mm 4.92"	145 mm 5.71"	175 mm 6.89"	200 mm 7.87"
L	Reach	363 mm 14.29"	386 mm 15.20"	411 mm 16.18"	423 mm 16.65"	446 mm 17.56"
M	Stack	548 mm 21.57"	572 mm 22.52"	591 mm 23.27"	619 mm 24.37"	642 mm 25.28"
N	Stem Length	60 mm 2.36"	70 mm 2.76"	70 mm 2.76"	80 mm 3.15"	90 mm 3.54"
O	Fork Height	420 mm 16.54"	420 mm 16.54"	420 mm 16.54"	420 mm 16.54"	420 mm 16.54"
