29"
160mm
150 mm
Bosch CX
800 Wh
Carbon / Alloy
From May 2026, this update will allow the maximum motor torque to be increased from 100 Nm to 120 Nm on any 5th-generation Bosch CX or CX-R motor, as well as increasing the maximum pedal assistance from 400% to up to 600%.
More torque to tackle the toughest climbs. More push in technical sections. More acceleration for those tricky sections. More power when the terrain gets tougher.
But the difference isn’t just in the numbers.

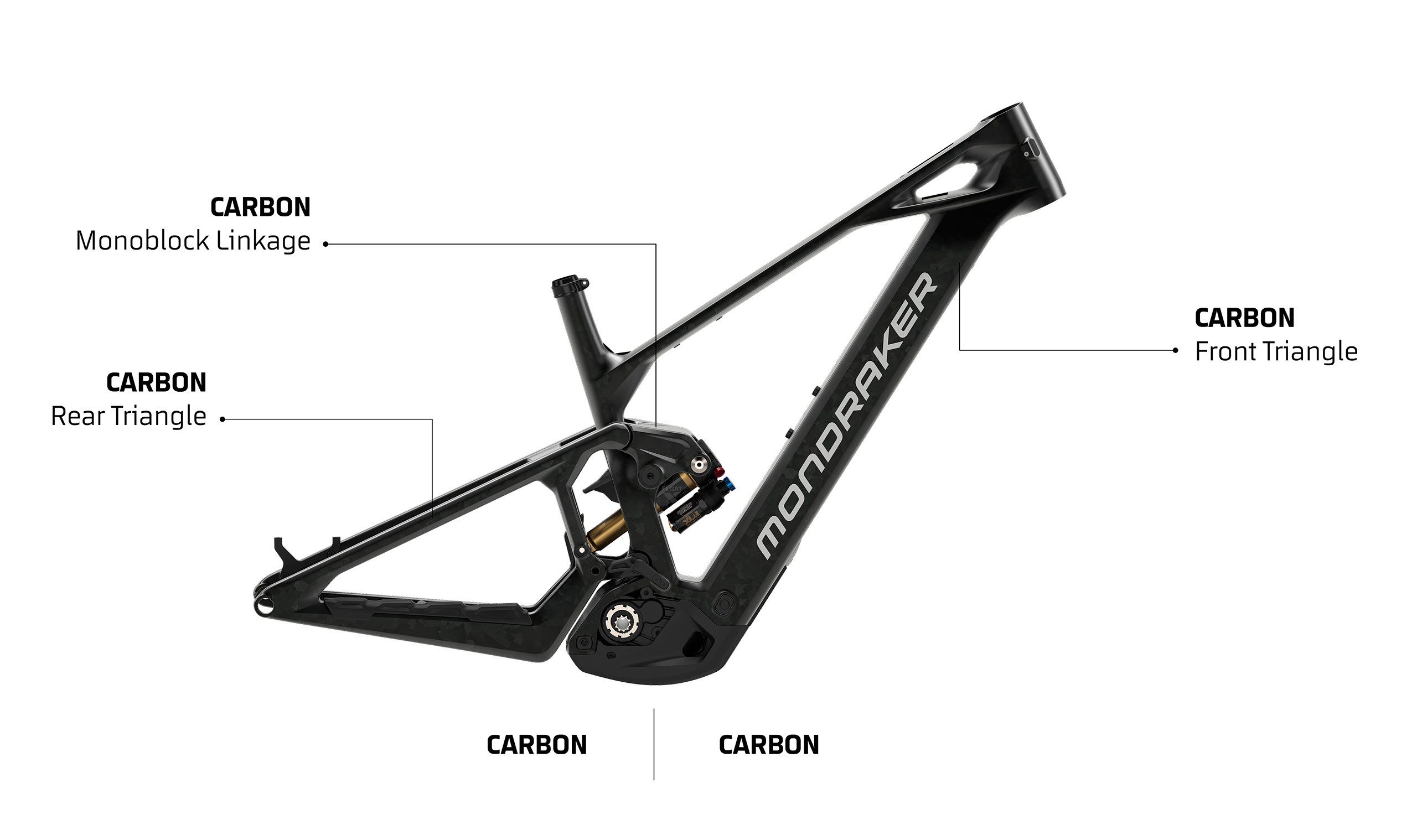

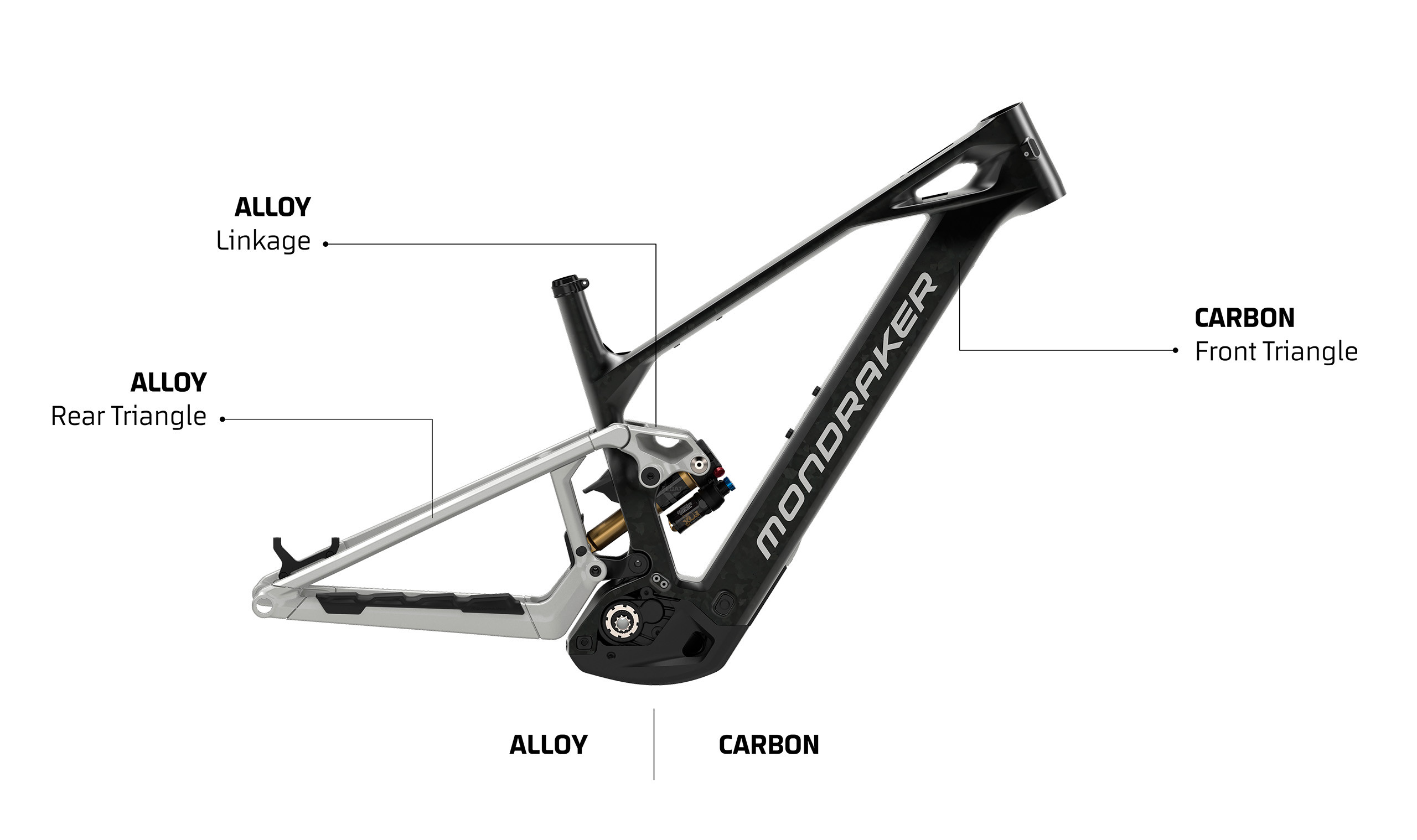

Crafty Carbon counts on an all-new carbon fibre frame manufactured from Stealth Air Carbon. There are 5 builds available in 5 different sizes, with two different chainstay lengths depending on size. The R build features a carbon fibre frame with an aluminium rear triangle. The other 4 builds, the RR, RR S and RR SL, are carbon fibre throughout.
The new design is also one degree slacker than the previous generation of Crafty Carbon, making the 2025 model more stable at speed. As well as the new 64.5° head angle, the new frame also comes with a two-position (standard and low) flip chip on the lower shock mount which means you can modify the bottom bracket height by +/- 0.5mm and the seat and head tube angles by +/-0.35° to better suit your style or terrain type.
As with the recently released SLY, Crafty Carbon now comes in 5 different sizes thanks to the addition of an ‘ML’ option.
A standout feature is the incorporation of two different chainstay lengths dependant on frame size. Chainstay length has a significant impact on how a bike handles, and gone are the day of one-size-fits-all. By having two different chainstay lengths we can keep the same ‘feel’ of a Crafty Carbon regardless of frame size. Forward Geometry is thus optimized by adapting chainstay length to frame size. The S, M, and ML sizes get 455mm chainstays, while the L and XL sizes grow by one centimetre to 465mm, ensuring that regardless of frame size the ride ‘feel’ stays consistent throughout the range. Crafty Carbon is our first bike to offer two different chainstay lengths.
This updated Bosch CX has the same 85Nm of torque and 600W peak power as the previous model but offers far better power delivery and control. Motor noise is reduced while pedalling and coasting, and mechanical rattles when riding downhill have been eliminated altogether.
The CX’s new software and electronics, together with the improved kinematics of the new Zero Suspension System, mean the Crafty Carbon offers improved performance in all conditions and on all terrain types. The new motor also boasts reduced drag when pedalling above 25km/h
Crafty Carbon range has a possibility to fit both the 800Wh or 600Wh batteries. R and RR models feature the new 800Wh Bosch batteries as original equipment and the more sophisticated RR S, XR and RR SL models are fitted with the lighter 600Wh version. Both batteries have been completely upgraded and optimised with the new generation of 21700 cells with higher energy density which, in combination with the new hardware and software improvements of the new Performance CX Bosch motor with renewed electronics, provide improved efficiency with longer battery range and a much lower weight compared to the previous generation. More kilometres, more fun.
The most versatile. The most complete. The bike capable of climbing the most technical trails and riding with confidence and stability on the fastest and most demanding descents. Mondraker’s Zero Suspension system and Forward Geometry, optimised for the Crafty platform are combined to maximise traction, stability and control on any terrain.
To mark its tenth anniversary, we present the ultimate expression of the Crafty. A limited and exclusive edition created to celebrate its evolution. A unique and one-of-a-kind Crafty. The Crafty Unlimited ICON.
Componenti
Telaio
Crafty Stealth Air full Carbon, sistema Zero Suspension aggiornato, escursione di 150 mm, Forward Geometry, batteria interna rimovibile, asse posteriore Boost 12x148 mm, UDH, tubo sterzo conico, link superiore Monoblock, passacavi interno HHG, cuscinetti sigillati con capacità di carico massima, assi sovradimensionati da 15 mm, coperchi motore in plastica
Taglie
S: 380 mm / M: 410 mm / ML: 435 mm / L: 460 mm / XL: 490 mm
Ammortizzatore
Fox Float X Factory Kashima EVOL LV, 185x55 mm. Regolazioni: leva di compressione a 2 posizioni, compressione a bassa velocità, ritorno a bassa velocità, precarico aria. Attacco superiore Trunnion, boccole inferiori 30x8 mm
Regolazione ammortizzatore
Compressione CS50, ritorno RL70, Bleed 1,1, Rezi B60, LML, MCU, distanziali di volume 0,2
Forcella
Fox Podium 29 Float GRIP X2 Factory Kashima, 160 mm, cannotto conico, asse Kabolt Boost 20x110 mm, offset 44 mm. Regolazioni: compressione alta e bassa velocità, ritorno ad alta e bassa velocità, precarico aria
Sterzo
Acros custom ZS56/ZS56, tubo sterzo 1 1/8”-1,5”, passaggio cavi interno, tappi di tenuta con blocklock
Attacco manubrio
ONOFF S9 30 mm 0º, Full CNC, diametro morsetto manubrio 31,8 mm
Manubrio
ONOFF S9 1.0 Carbon, rise: 25 mm, larghezza: 800 mm, backsweep 8º, upsweep 5º, diametro morsetto manubrio 31,8 mm. Taglia L e XL: rise di 38 mm
Manopole
ONOFF Desert Pro, CNC lock-on, 135 mm. L e XL: dimensioni più spesse
Reggisella
Fox Transfer Factory Kashima interno, corsa regolabile, diametro 31,6 mm, taglia S: 95-120 mm, taglia M: 125-150 mm, taglia ML: 155-180 mm, taglia L: 185-210 mm, taglia XL: 185-210 mm
Sella
Ergon SM-10
Freno anteriore
Sram Maven Silver, pinza a 4 pistoncini da 18 millimetri, disco freno monopezzo HS2 da 200 mm con IS a 6 bulloni, pastiglie in metallo sinterizzato con piastra in acciaio
Freno posteriore
Sram Maven Silver, pinza a 4 pistoncini da 18 millimetri, disco freno monopezzo HS2 da 200 mm con IS a 6 bulloni, pastiglie in metallo sinterizzato con piastra in acciaio
Leve Freno
Sram Maven Silver, SwingLink e cuscinetti sul perno della leva, leva in carbonio
Cerchi
DT Swiss Hybrid HX 1700 Spline, larghezza interna 30 mm, alluminio saldato, tubeless ready, 28 raggi
Raggi
Raggi DT Swiss straightpull, DT Hybrid III, nero
Asse mozzo anteriore
DT Swiss 350, Boost 20x110 mm, IS a 6 bulloni
Asse mozzo posteriore
DT Swiss 350 Classic con sistema Ratchet 72T DEG, Boost 12x148 mm, IS a 6 bulloni, corpo ruota libera XD
Pneumatico anteriore
Maxxis Assegai 29x2.5WT, tubeless ready, mescola 3C Maxx Grip, EXO+ Protection, 60TPI, tallone pieghevole
Pneumatico posteriore
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, mescola 3C MaxxTerra, DD Protection, 2x120TPI, tallone pieghevole
Guarnitura
e*thirteen Helix Core E*Spec Plus, tutte le taglie: 155 mm
Corona
Sram XX Eagle 34T T-Type, montaggio diretto, acciaio, CL55
Catena
Sram GX Eagle T-Type, Flattop a 12 velocità, PowerLock
Cambio - Posteriore
Sram X0 Eagle AXS, T-Type, 12 velocità
Comandi cambio
Sram Eagle AXS Pod MMX, 12 velocità
Cassetta Pignoni
Sram XS-1275, 10-52T, T-Type, 12 velocità
Peso senza pedali
23,9 kg
Display
Kiox 400C / Bosch Mini Remote
Motore
Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU384Y)
Batteria
Bosch PowerTube 800Wh
Questa tabella delle taglie è solo una stima. La dimensione ottimale del telaio dipende anche dal tuo stile di guida personale.
|
Dimensione del telaio
|
S [Std/Low] | M [Std/Low] | M/L [Std/Low] | L [Std/Low] | XL [Std/Low] | |
|---|---|---|---|---|---|---|
| A | Lunghezza Piantone | 380 mm 14.96" | 410 mm 16.14" | 435 mm 17.13" | 460 mm 18.11" | 490 mm 19.29" |
| B | Lunghezza Tubo Orizz. Virtuale | 581 mm/582 mm 22.87" | 596 mm/597 mm 23.46" | 618 mm/619 mm 24.33" | 640 mm/641 mm 25.20" | 662 mm/663 mm 26.06" |
| C | BB Drop | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" |
| D | Altezza movimento centrale | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" |
| E | Lunghezza Batticatena | 455 mm/456 mm 17.91" | 455 mm/456 mm 17.91" | 455 mm/456 mm 17.91" | 465 mm/466 mm 18.31" | 465 mm/466 mm 18.31" |
| F | Angolo tubo sella | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° |
| G | Angolo Sella | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° |
| H | Angolo Sterzo | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° |
| I | Offset Forcella / Rake | 44 mm 1.73" | 44 mm 1.73" | 44 mm/44 mm 1.73" | 44 mm 1.73" | 44 mm/44 mm 1.73" |
| J | Interasse | 1240 mm/1241 mm 48.82" | 1255 mm/1256 mm 49.41" | 1280 mm/1281 mm 50.39" | 1314 mm/1315 mm 51.73" | 1338 mm/1339 mm 52.68" |
| K | Lunghezza Tubo Sterzo | 120 mm 4.72" | 120 mm 4.72" | 130 mm 5.12" | 140 mm 5.51" | 150 mm 5.91" |
| L | Reach | 445 mm/441 mm 17.52" | 460 mm/456 mm 18.11" | 480 mm/476 mm 18.90" | 500 mm/496 mm 19.69" | 520 mm/516 mm 20.47" |
| M | Stack | 638 mm/641 mm 25.12" | 638 mm/641 mm 25.12" | 647 mm/650 mm 25.47" | 656 mm/659 mm 25.83" | 665 mm/668 mm 26.18" |
